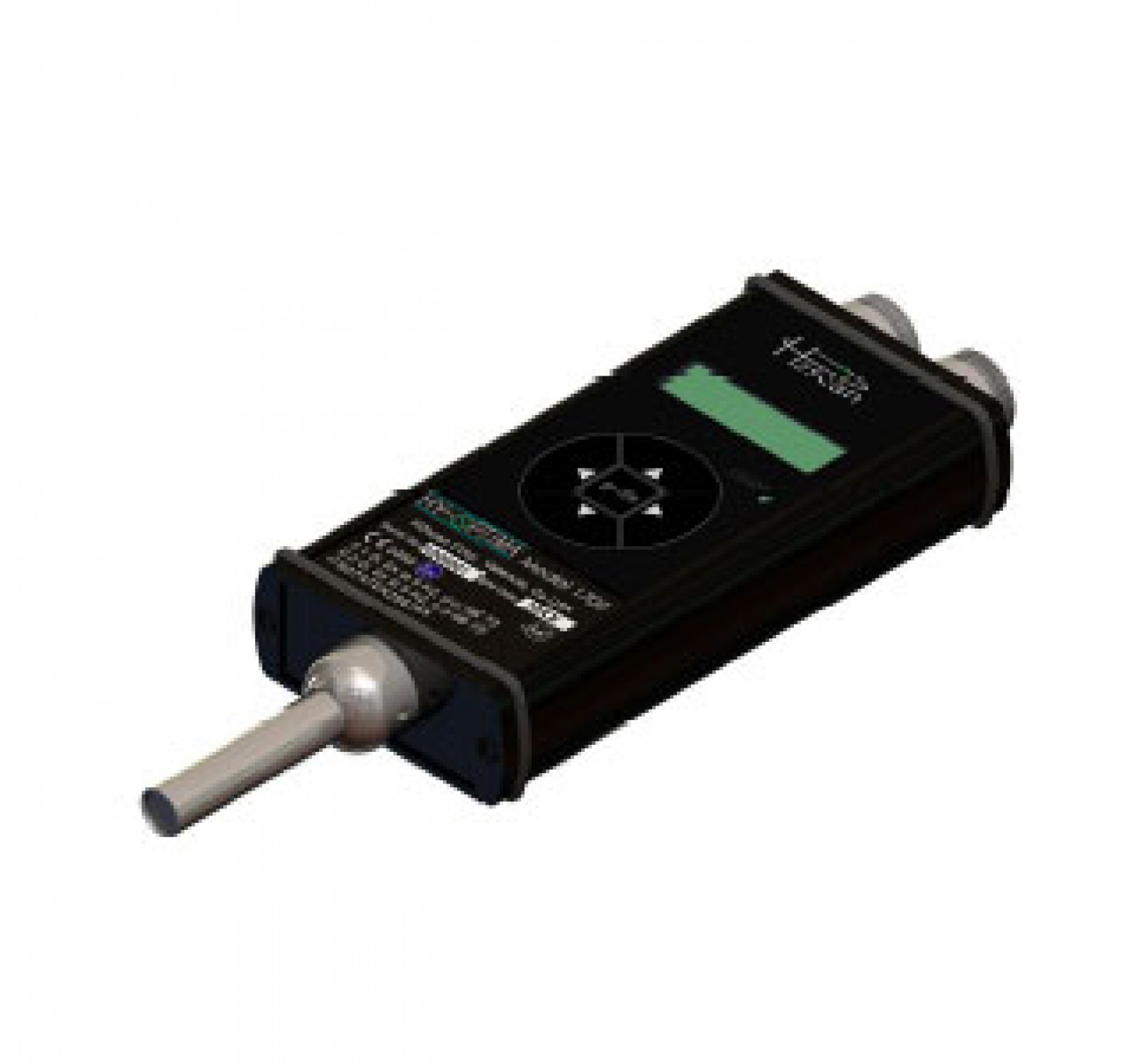

HY-OPTIMA™ 1700 Series

Intrinsically Safe In-line Hydrogen Process Analyzer

ATEX Intrinsically Safe In-line Hydrogen Process Analyzer

H2scan’s HY-OPTIMA™ 1700 series in-line, real time hydrogen-specific process analyzers are designed for ease of use, interface flexibility and true process control. The HY-OPTIMA™ 1700 series is an ATEX certified Intrinsically Safe (IS) device that incorporates our patented solid-state sensor and is configured to operate in background gas streams with up to 95% relative humidity and temperatures up to 60ºC. The HY-OPTIMA™ 1700 series is ideal for process gas applications where real time continuous measurements of hydrogen can increase process plant efficiencies, improve diagnostics and enhance maintenance management translating into higher profitability.

Configuration Details

• Verification Interval: 90 Days
• Field Calibration: Yes

• Operating Humidity: < 95% RH (non condensing)

• Flow Rate: 0.1 to 10 slpm

• Process Gas Temperature -20ºC to 60ºC

• Operating Temperature: -20ºC to 40ºC

• Storage Temperature: -40ºC to 50ºC

• Output Signals

• Analog: 4 to 20mA

• Serial: RS422

• Input Voltage

• Power Barrier: 24 VDC nominal

• Power Barrier Range: 20 VDC – 28 VDC

• Intrinsically Safe Sensor: 10 VDC

• Sensor Range: 5 VDC – 28 VDC

• Input Power:10W

• Dimensions: 10.3in (L) x 3.4in (W) x 1.4in (D)

• Adapter Fitting: ½ in. MNPT, ½ in FNPT, -8 SAE

• Background Gases: N2, CO2, Alkanes (CH4), Inert Gases (He, Ar)

Product Selections

The HY-OPTIMA™ 1700 Series product family includes sensor types that are designed for specific hydrogen ranges, corrosive gas tolerances and operation when no hydrogen is present. See the guide below for more details.

Certifications

HY-OPTIMA™ is a registered Trademark of H2scan.

Specifications subject to change without prior notice.
