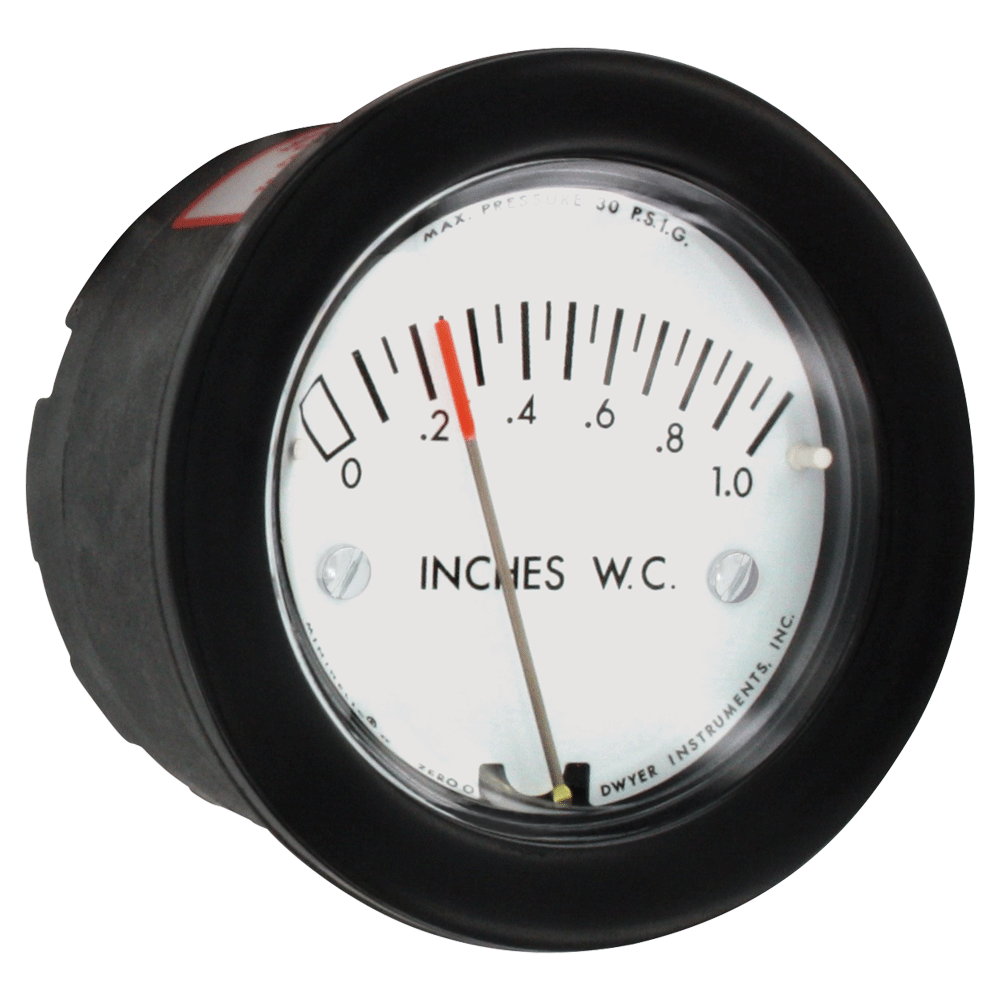

MINIHELIC ® II DIFFERENTIAL PRESSURE GAGE
Combining High Accuracy, Compactness, Dependability, and Low Cost
Combining clean design, small size and low cost with enough accuracy for all but the most demanding applications our Series 2-5000 Minihelic ® II Differential Pressure Gage offers the latest in design features for a dial type differential pressure gage. It is our most compact gage but is easy to read and can safely operate at total pressures up to 30 psig.
FEATURES/BENEFITS

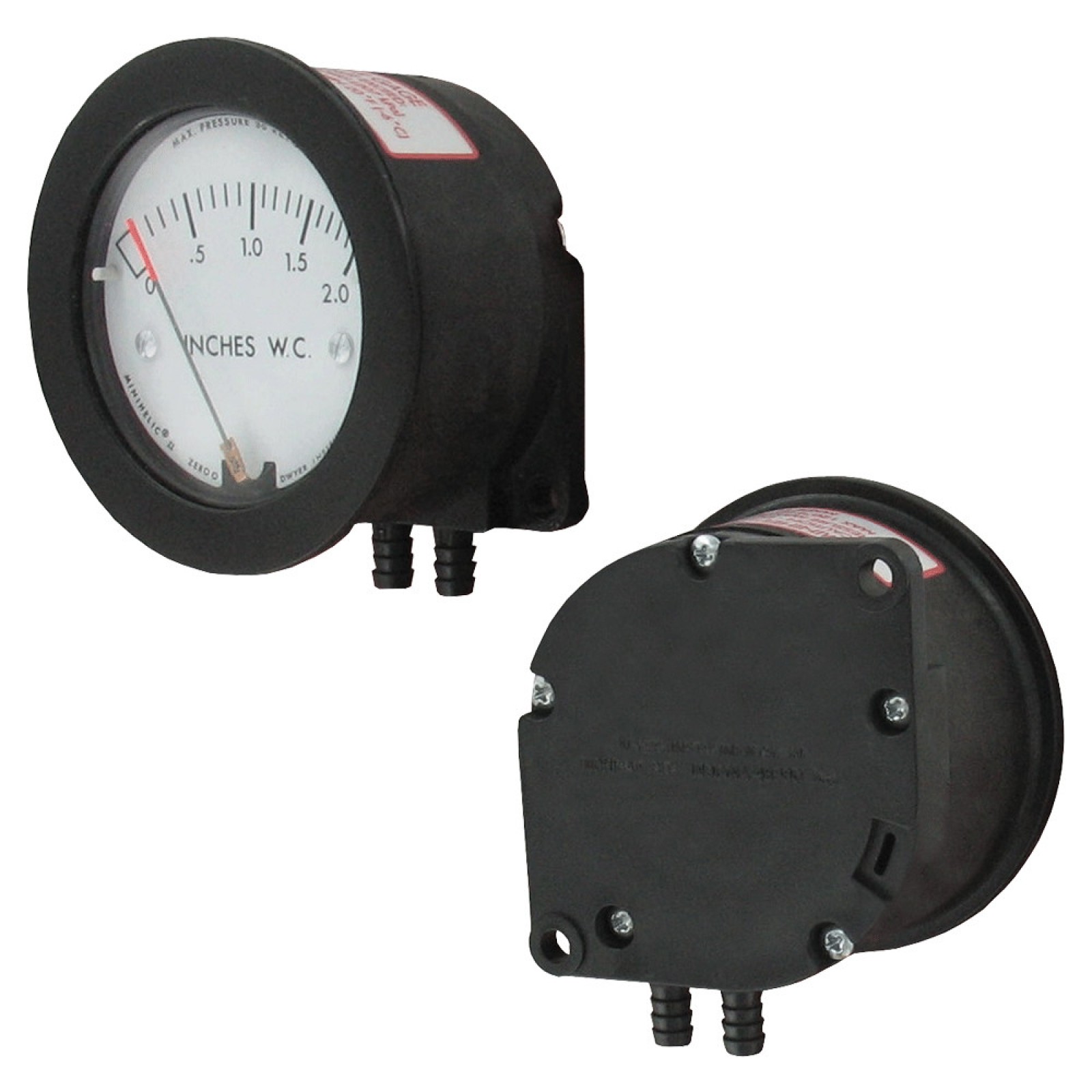

• Removable lens and rear-housing provides easy, cost-effective servicing
• Accuracy and value provides an excellent solution for OEM and user applications
• Durable housing materials make it well-suited for rough environments and total high
pressure
APPLICATIONS
• Room positive pressure sensing
• Cabinet air-purging
• Medical respiratory equipment
• Air samplers
• Electronic air cooling systems
• Laminar flow hoods
• Local indication on filter status
• Face velocity on fume hood
• Duct pressures
SPECIFICATIONS
Service: Air and compatible gases.
Wetted Materials: Consult factory.
Housing: Glass filled nylon; polycarbonate lens.
Accuracy: ±5% of FS at 70°F (21.1°C).
Pressure Limits: 30 psig (2.067 bar) continuous to either pressure connection.
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Size: 2-1/16˝(52.39mm) diameter dial face.

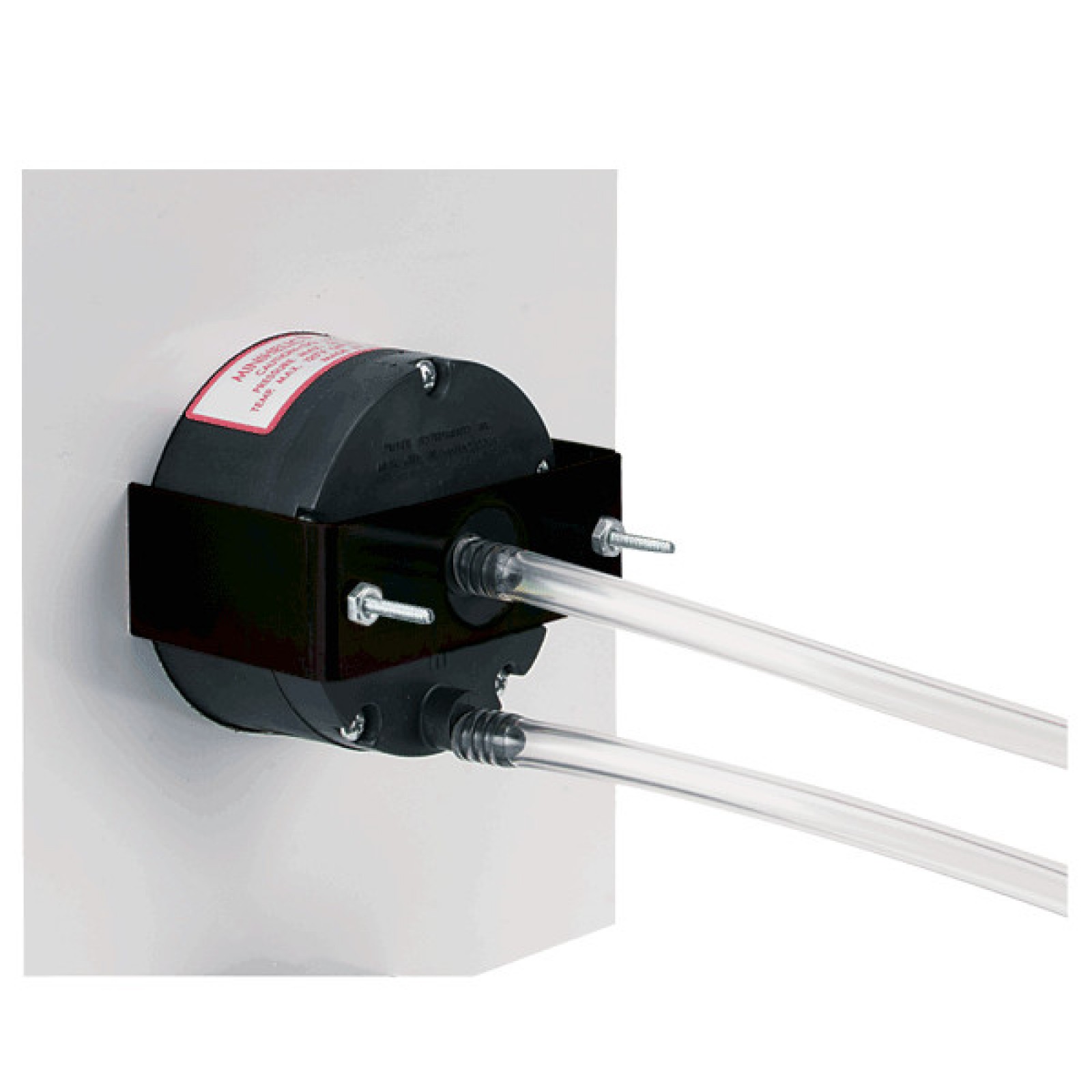

Mounting Orientation: Diaphragm in vertical position. Consult factory for other
position orientations.

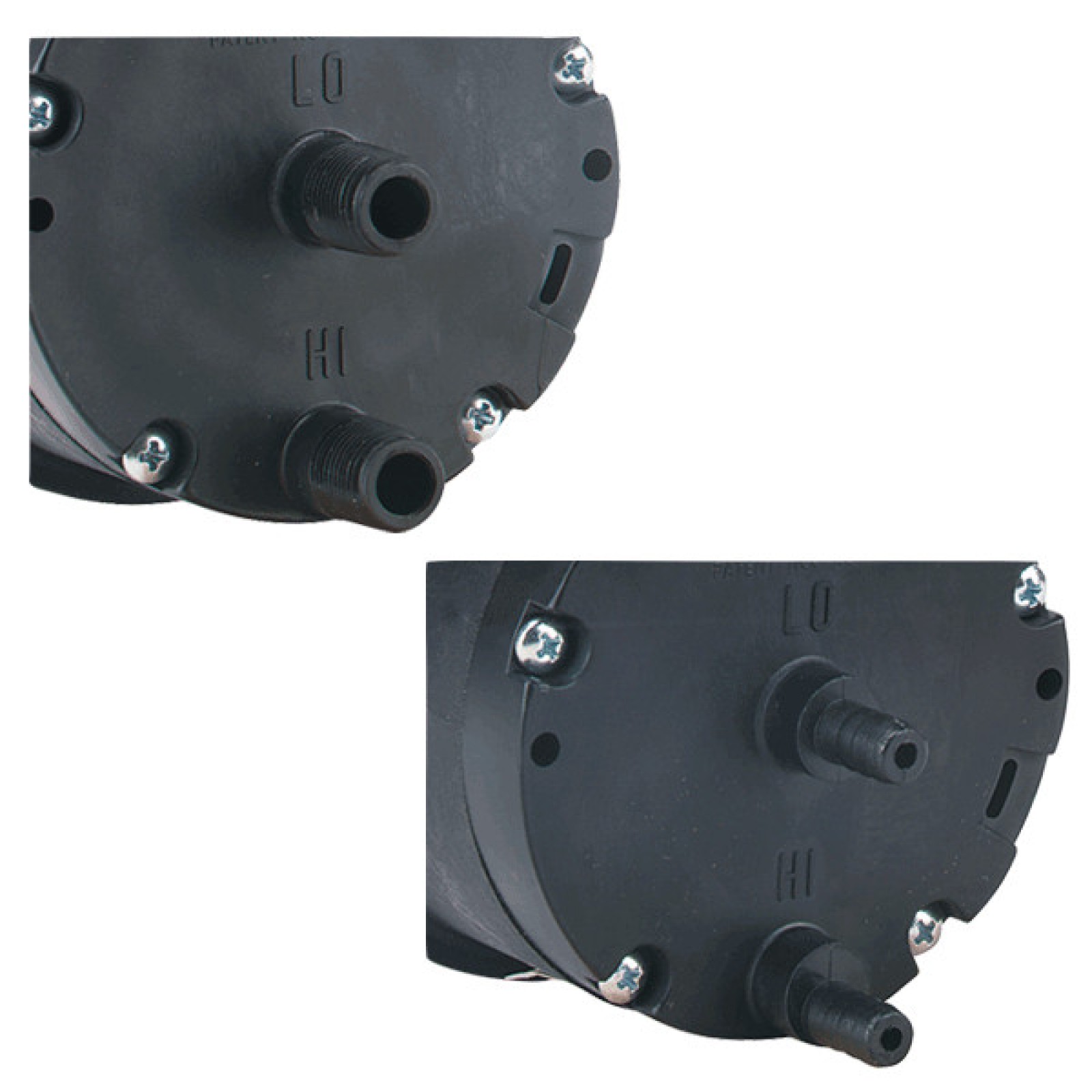

Process Connections: Barbed, for 3/16˝ ID tubing (standard); 1/8˝ male NPT (optional).
Weight: 6 oz (170.1 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
Caution: For use only with air or compatible non-corrosive gases.
