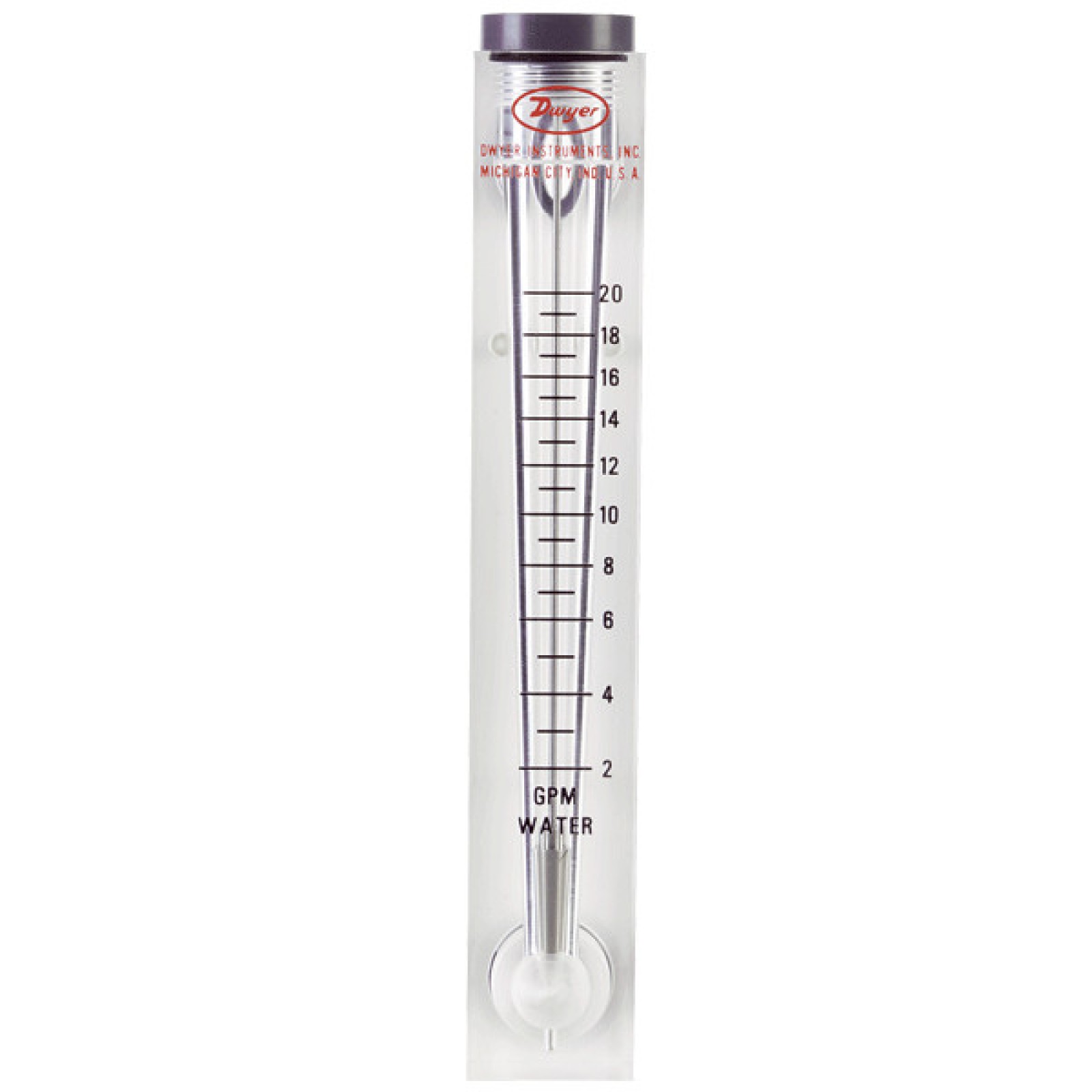

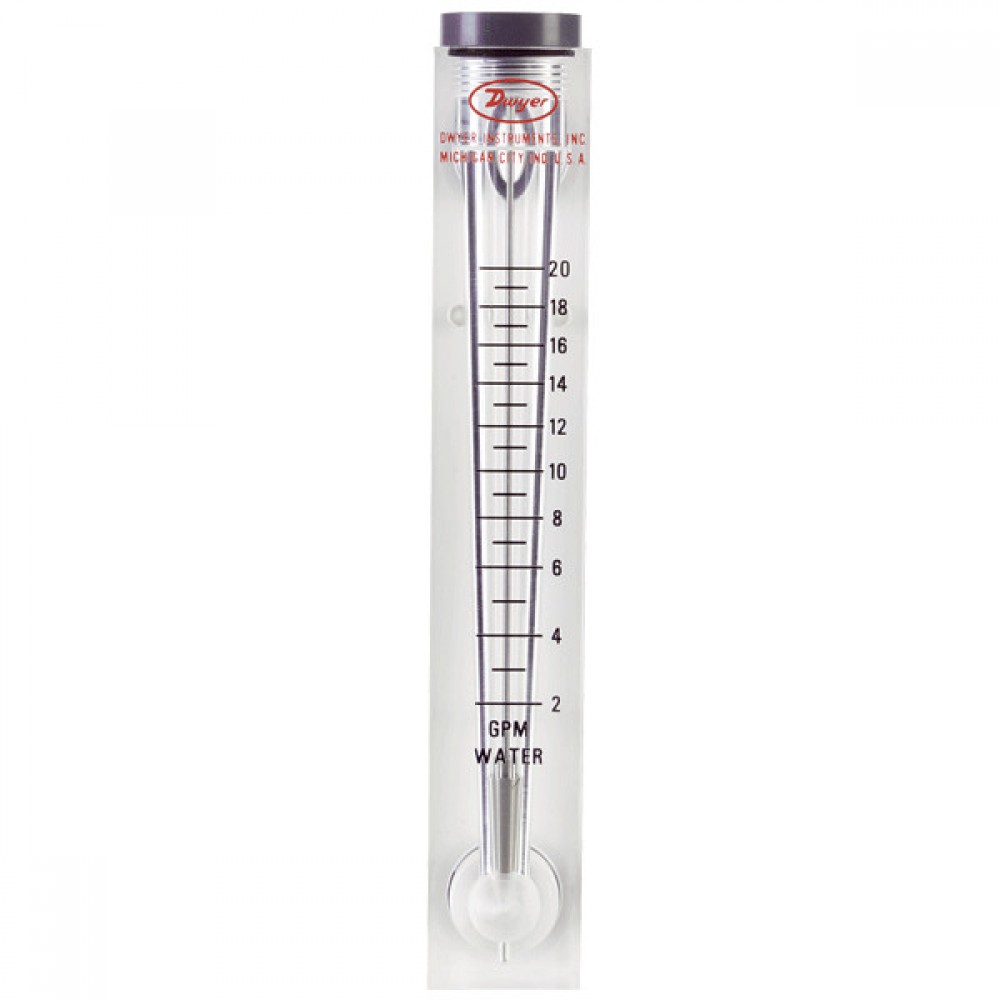

VISI-FLOAT ® ACRYLIC FLOWMETERS

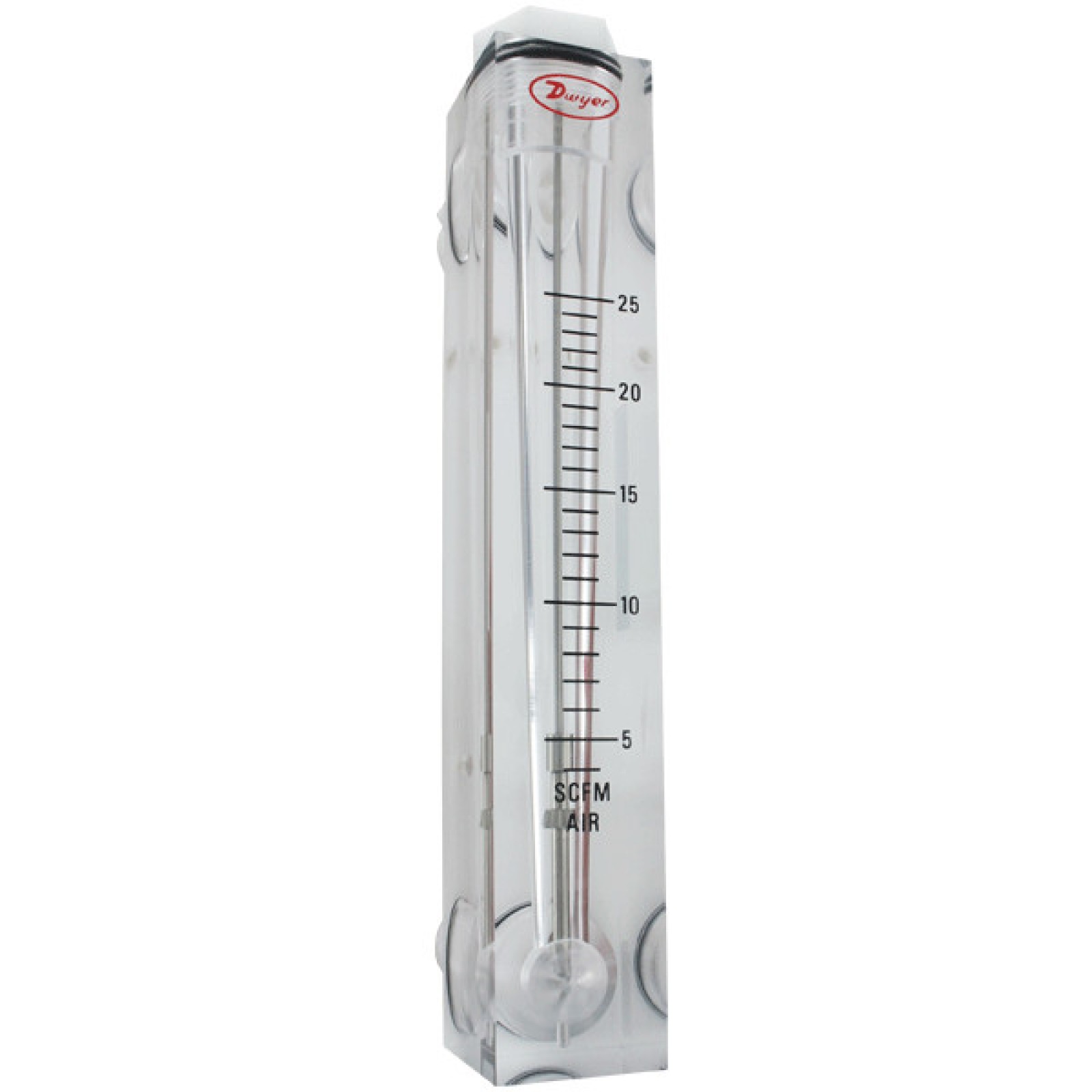

5˝ Scale, In-Line or Back Connection Options
The Series VFC Visi-Float ® Acrylic Flowmeters are direct reading, precision machined, clear acrylic body flowmeters suitable for both gas and liquid applications.
This Series consists of two 5˝ (127 mm) scale flowmeters, the VFC and VFC II.

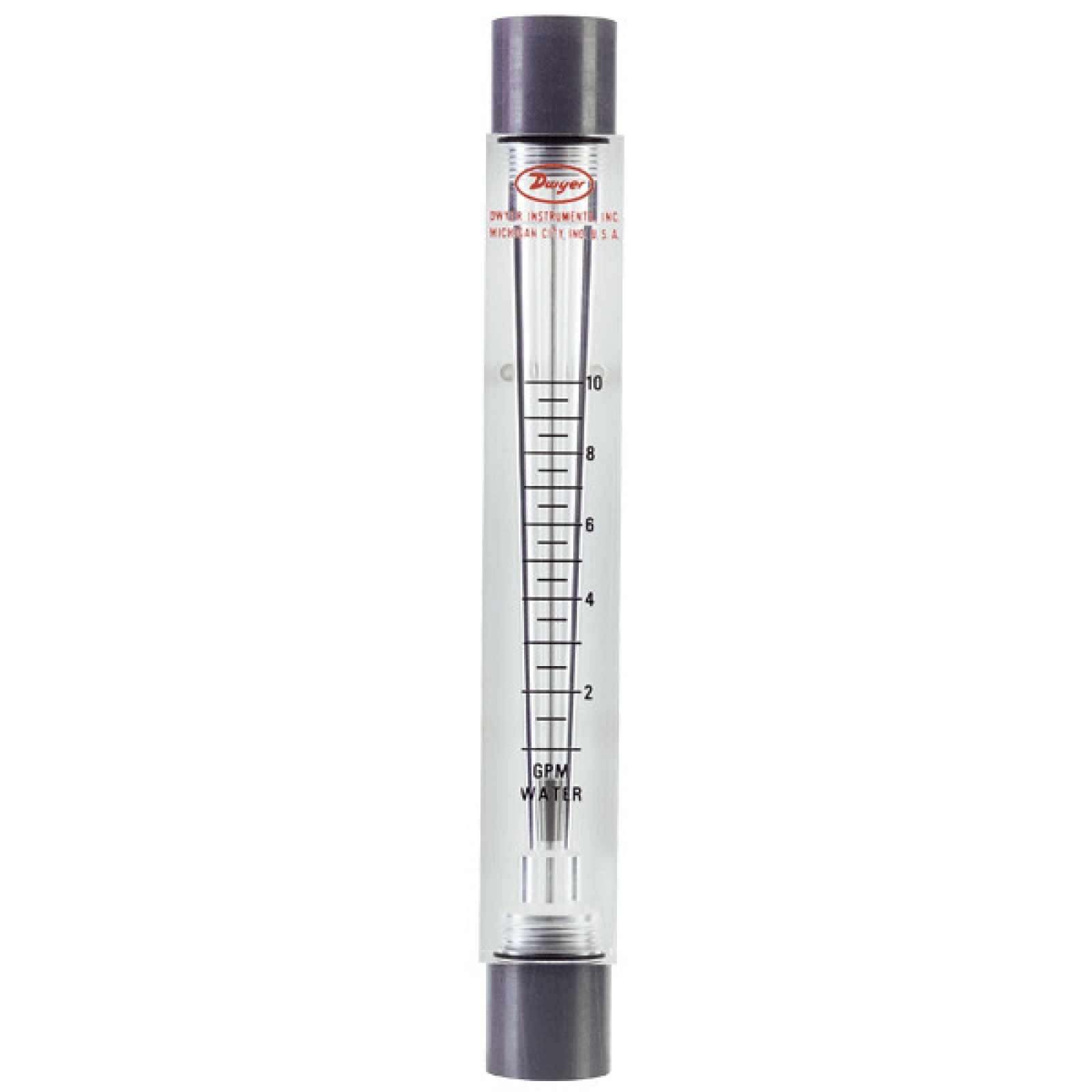

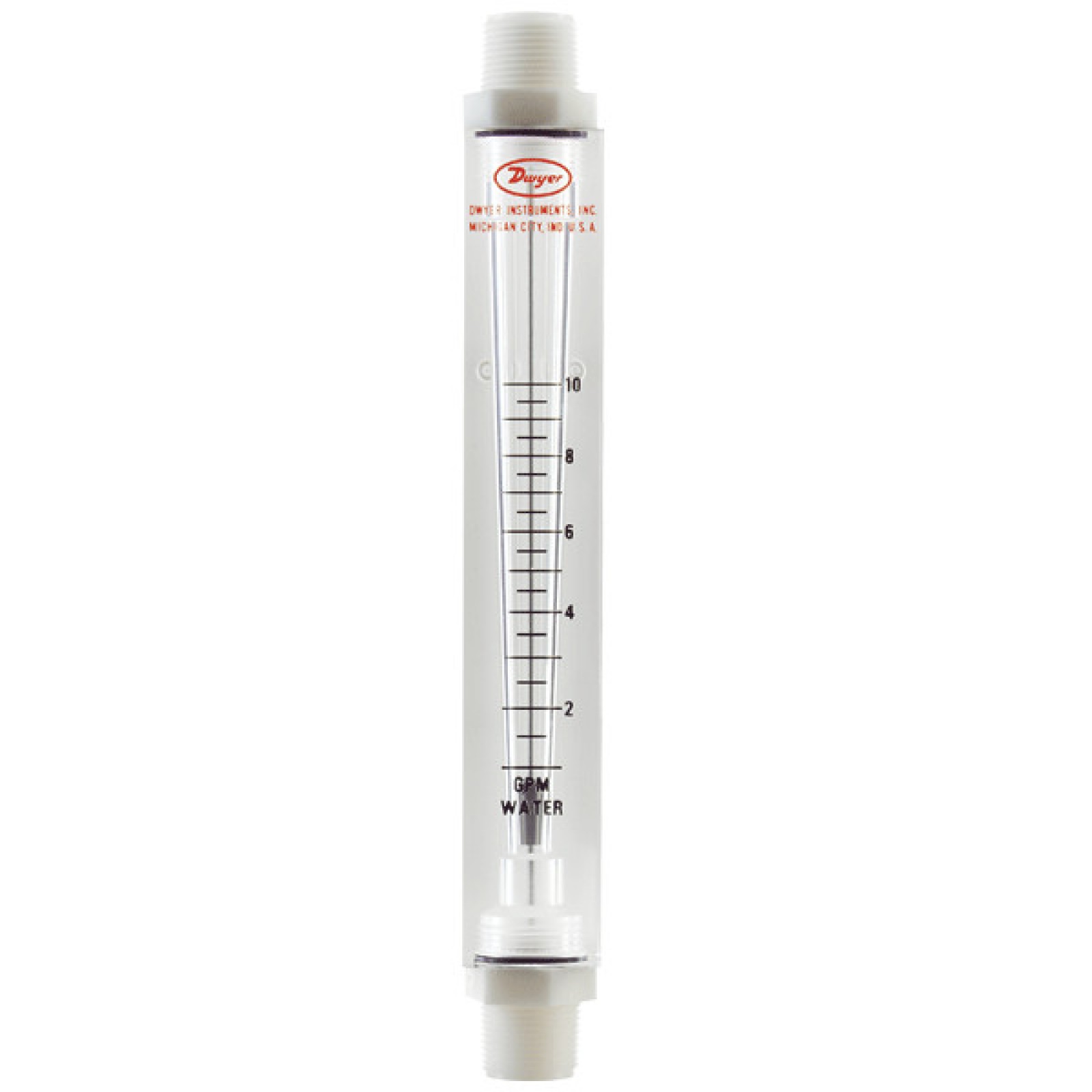

The VFC features PVC 1˝ female NPT connections and the VFC II units are equipped with acetal thermoplastic 1˝ male NPT fittings.
FEATURES/BENEFITS
• Bodies are cut and precision machined from solid, clear acrylic blocks allowing for complete visual inspection
• White background allows for better visibility of the float increasing reading accuracy
• Direct reading scales are hot stamped into the plastic eliminating the need for troublesome conversions and increasing product operating life
• Precision machined tapered bore enables high repeatability
• Low installation costs with back or end connection options
APPLICATIONS
• Medical equipment
• Laboratory equipment
• Air samplers
• Gas analyzers
• Pollution monitors
• Chemical injectors
• Cabinet purging
• Remediation
• Osmosis skids
